Our Co-LAB Machinery Technology Center is equipped with a wide range of experimental equipment,
allowing us to meet a broad range of customer testing needs and application requirements.
allowing us to meet a broad range of customer testing needs and application requirements.
Kneading / Reaction
Solvent Removal

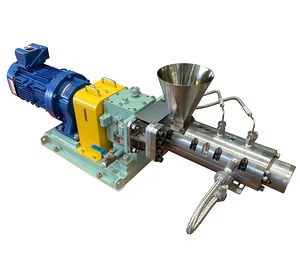

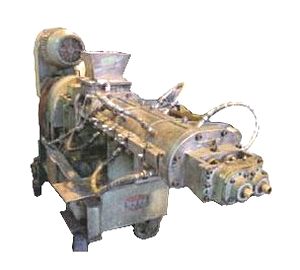

KRC Kneader
 |
 |
 |
 |
|
| Model number | S1 | S2 | S5 | T2 |
| Paddle shape | Two-flight type | Two-flight type | Two-flight type | Three-flight type |
| Paddle revolution No. | 50~500 [min-1] | 30~300 [min-1] | 14~144 [min-1] | 70~240 [min-1] |
| Throughput (Reference Value) |
~5 [kg/h] | ~40 [kg/h] | ~330 [kg/h] | ~25 [kg/h] |
| Operation Mode | Continuous | Continuous | Continuous | Continuous |

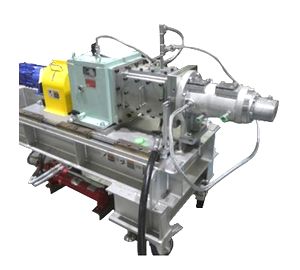

Hybrid Reactor
 |
 |
 |
|
| Model number | 0.12L | 1L | 8L |
| Paddle revolution No. | ~200 [min-1] | ~180 [min-1] | ~200 [min-1] |
| Throughput (Reference Value) |
~0.2 [L/h] | ~1.5 [L/h] | ~10 [L/h] |
| Operation Mode | Batch/Continuous | Continuous | Continuous |
Extruder
 |
 |
|
| Model number | KEXN30 | KEXD50 |
| Paddle revolution No. | 30~300 [min-1] | 15~1500 [min-1] |
| Throughput (Reference Value) |
~20 [kg/h] | ~40 [kg/h] |
| Operation Mode | Continuous | Continuous |

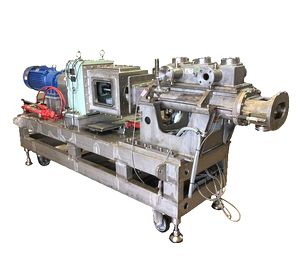

SC Processor Differential speed type
 |
 |
|
| Model number | SCPD100 (Unit No.2) | SCPD100 (Unit No.3) |
| Paddle revolution No.(high-speed shaft side) | 10~100 [min-1] | 22.5~219 [min-1] |
| Throughput (Reference Value) |
10~120 [kg/h] | 10~120 [kg/h] |
| Operation Mode | Continuous | Continuous |
Grinding / Granulation
Classification

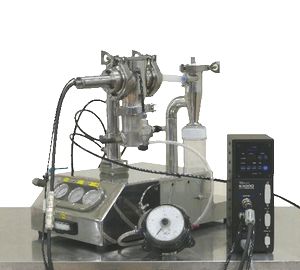

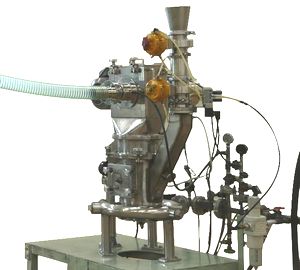

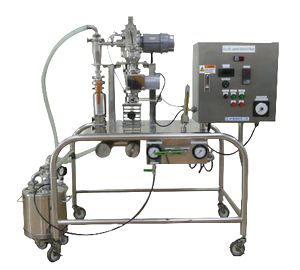

Cross Jet Mill
 |
 |
 |
 |
|
| Model number | PJ6 | KJ25 | KJ50 | KJ200 |
| Air consumption | 0.98 [Nm3/min] | 1.6 [Nm3/min] | 2.0 [Nm3/min] | 6.0 [Nm3/min] |
| Classifying rotor revolution No. | ~40000 [min-1] | ~21000 [min-1] | ~21000 [min-1] | ~10000 [min-1] (Alumina rotor)
~15000 [min-1] (Silicon nitride rotor) |
| Throughput (Reference Value) |
1~5 [g] | 0.2~5 [kg/h] | 5~20 [kg/h] | 20~40 [kg/h] |
| Operation Mode | Batch | Batch/Continuous | Batch/Continuous | Continuous |

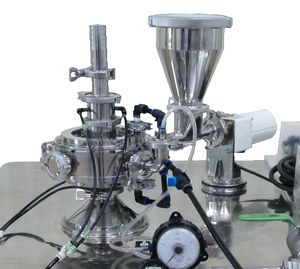

GADJET (Laboratory-Scale Jet Mill for R&D)
 |
 |
|
| Model number | H20 | H50 |
| Air consumption | 0.7 [Nm3/min] | 2.0 [Nm3/min] |
| Classifying rotor revolution No. | ~40000 [min-1] | ~18000 [min-1] |
| Throughput (Reference Value) |
1~5 [g] | 0.6~10 [kg/h] |
| Operation Mode | Batch | Continuous |

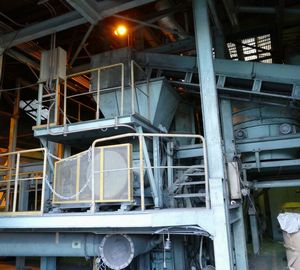

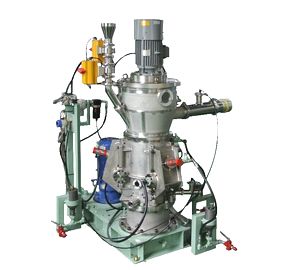

VX Mill
 |
 |
|
| Model number | VX015 | VX066 |
| Classifying rotor revolution No. | ~1720 [min-1] (Wizzer type)
~7000 [min-1] (Sharp Cut type) |
~450 [min-1] (Wizzer type)
~1500 [min-1] (Sharp Cut type) |
| Throughput (Reference Value) |
10~20 [kg/h] | 0.5~3.0 [t/h] |
| Operation Mode | Continuous | Continuous |
Agitating Mill
 |
 |
|
| Model number | FK40 | FK80 |
| Agitating Blade revolution No. | ~600 [min-1] | ~360 [min-1] |
| Mill Casing capacity | 35.3 [L] | 81.2 [L] |
| Throughput (Reference Value) |
1~15 [kg] | 2~40 [kg/h] |
| Operation Mode | Continuous | Continuous |

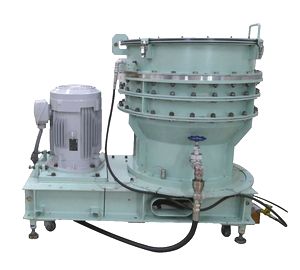

High-speed Planetary Mill
 |
|
| Model number | BX382 |
| Centrifugal acceleration | ~150 [G]（正転）
~40 [G]（逆転） |
| Mill pot | 500 [cc] ×2個 (Zirconia)
2400 [cc] ×2個 (SUJ) |
| Throughput (Reference Value) |
50 [cc] ×2個 (Zirconia)
240 [cc] ×2個 (SUJ) |
| Operation Mode | Batch |
Granulator (Roll Granulator & Granulator with screen)
 |
 |
|
| Model number | RG1212 | RGS1512 |
| Roll size | φ120×120W×2pcs | φ150×120W×1pcs |
| Roll revolution No. | 340 [min-1] | 180 [min-1] |
| Throughput (Reference Value) |
5~20 [kg/h] | 5~20 [kg/h] |
| Operation Mode | Continuous | Continuous |
| 台数 | 3 | 2 |

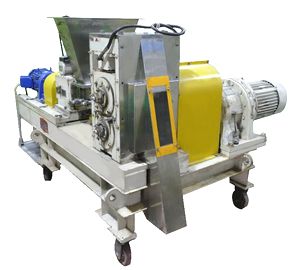

Roller Compactor & Coarse Crusher
 |
 |
|
| Model number | MRCP200 | RB1212 |
| Roll size | φ200×90W×2pcs | φ120×120L×1pcs |
| Roll revolution No. | ~20 [min-1] | 180 [min-1] |
| Throughput (Reference Value) |
10~100 [kg/h] | 10~100 [kg/h] |
| Operation Mode | Continuous | Continuous |

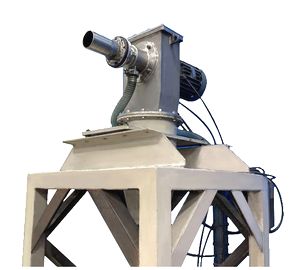

Sharp Cut Separator
 |
 |
|
| Model number | KA50 | KA100 |
| Classifying rotor revolution No. | ~21000 [min-1] | ~10000 [min-1] |
| Throughput (Reference Value) |
0.2~5 [kg/h] | 10~40 [kg/h] |
| Operation Mode | Continuous | Continuous |

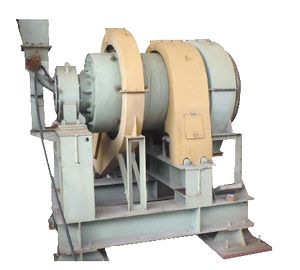

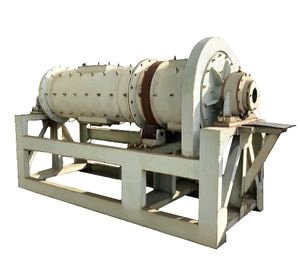

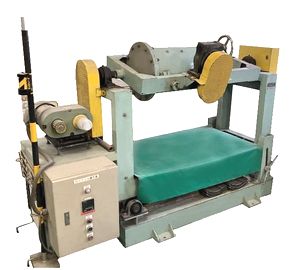

Ball Mill / Rod Mill
 |
 |
 |
 |
|
| Model number | φ305x305L | φ305x610L | φ900x1500L | φ750x2730L |
| Grinding medium | Ball | Ball / Rod | Ball / Rod | Ball |
| Paddle revolution No. | ~70 [min-1] | ~70 [min-1] | ~40 [min-1] | ~40 [min-1] |
| Throughput (Reference Value) |
― [L] | ― [L] | 0.1~1 [t/h] | ~0.3 [t/h] |
| Operation Mode | Batch | Batch | Continuous | Continuous |
Drying / Calcining
Solvent Recovery

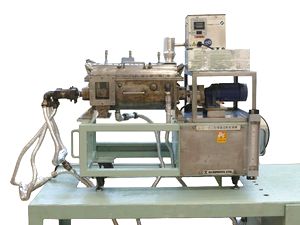

CD Dryer
 |
|
| Model number | CD80 |
| Heating temperature | ~230 [℃] |
| Throughput (Reference Value) |
4~5 [L]／2~10 [L/h] |
| Operation Mode | Batch/Continuous |
| Internal atmosphere | Air, inert gas |
Steam Tube Dryer
 |
 |
|
| Model number | Batch type | Continuous type |
| Heating temperature | ~151 [℃] | ~120 [℃] |
| Throughput (Reference Value) |
5 [L] | 20~60 [L/h] |
| Operation Mode | Batch | Continuous |
| Internal atmosphere | Air, inert gas | Air, inert gas |

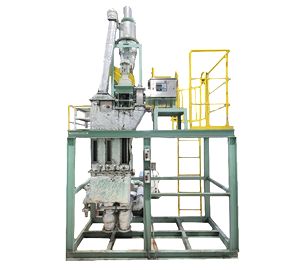

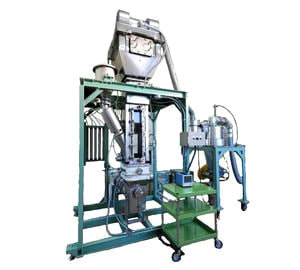

Fluid Bed Drying System
 |
 |
|
| Model number | Batch type | Continuous type |
| Heating temperature | ~200 [℃] | ~200 [℃] |
| Throughput (Reference Value) |
10~30 [L] | 3~15 [L/h] |
| Operation Mode | Batch | Continuous |
| Internal atmosphere | Air | Air |

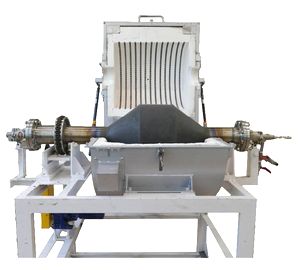

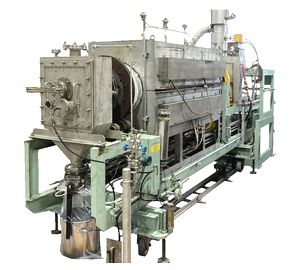

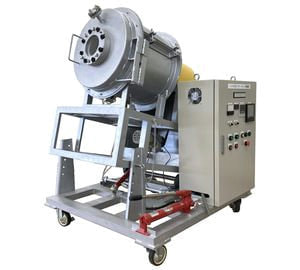

Rotary Kiln
 |
 |
 |
 |
|
| Model number | Sealed batch-type rotary kiln | Open-type batch rotary kiln | External Heating Type Rotary Kiln |
Ceramic Kiln |
| Heating temperature | ~1000 [℃] | ~1000 [℃] | ~1000 [℃] | ~1300 [℃] |
| Throughput (Reference Value) |
0.3 or 4 [L] | 0.2 [L] | 5~20 [L/h] | 0.1~20 [L/h] |
| Operation Mode | Batch | Batch | Continuous | Continuous |
| Internal atmosphere | Air, inert gas, hydrogen, etc. | Air | Air, inert gas | Air |

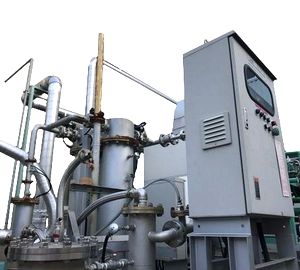

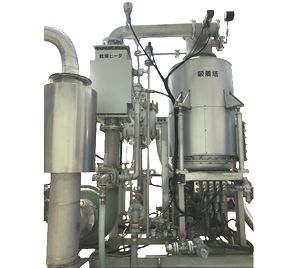

Solvent Recovery System
 |
 |
|
| Model number | Steam-desorption type #6-100SA |
Vacuum-desorption type (PSA type) |
| Treatment air quantity | 8 [m3/min] | 0.75 [m3/min] |
| Solvent removal efficiency | 95 [％] | 95 [％] |
| Remarks | Compatible with SCPD for solvent removal and recovery. |
Compatible with SCPD for solvent removal and recovery. |
